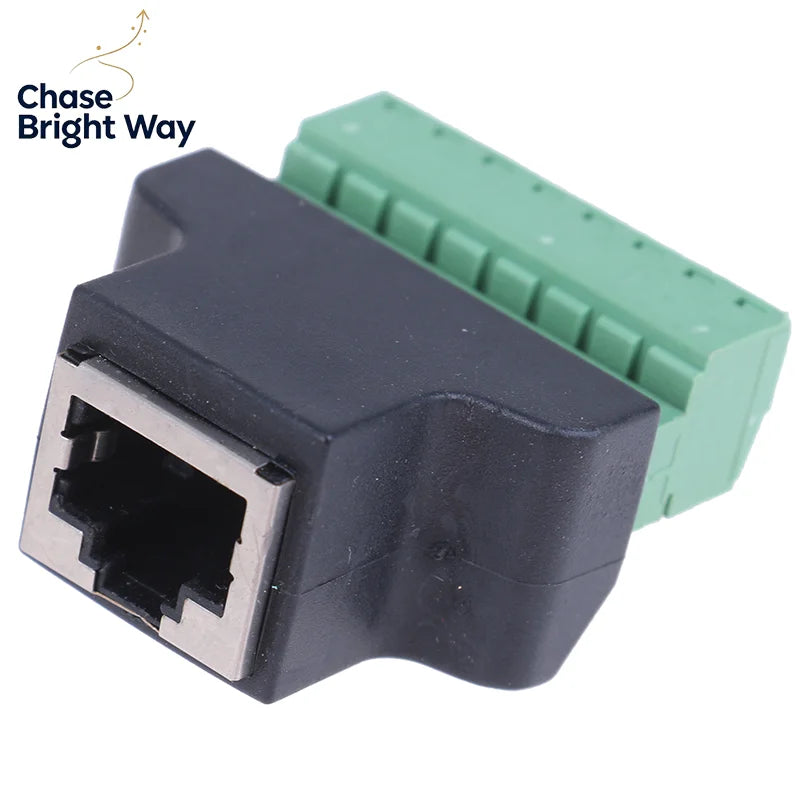

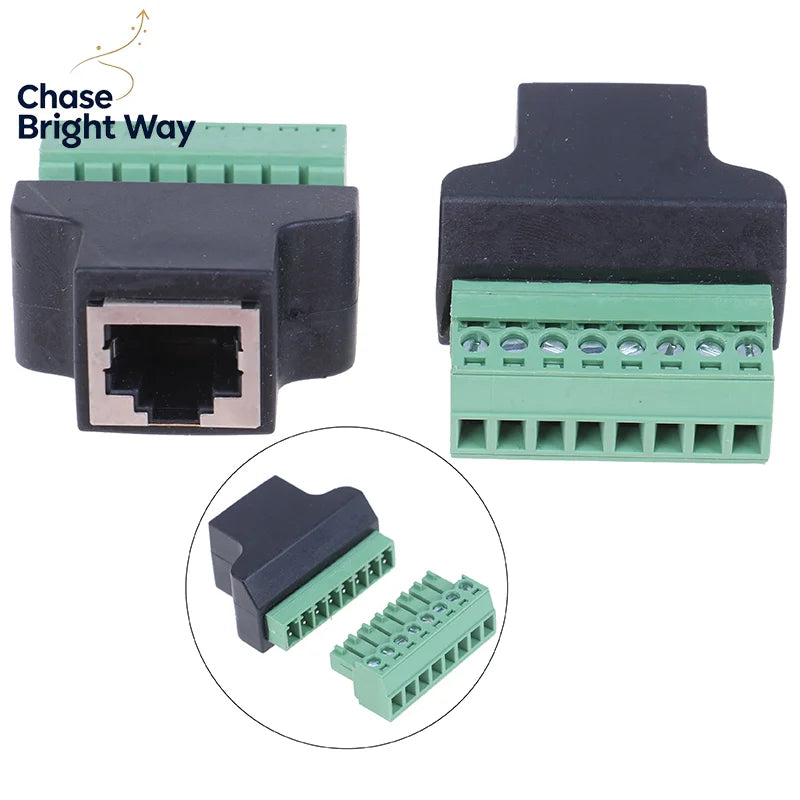

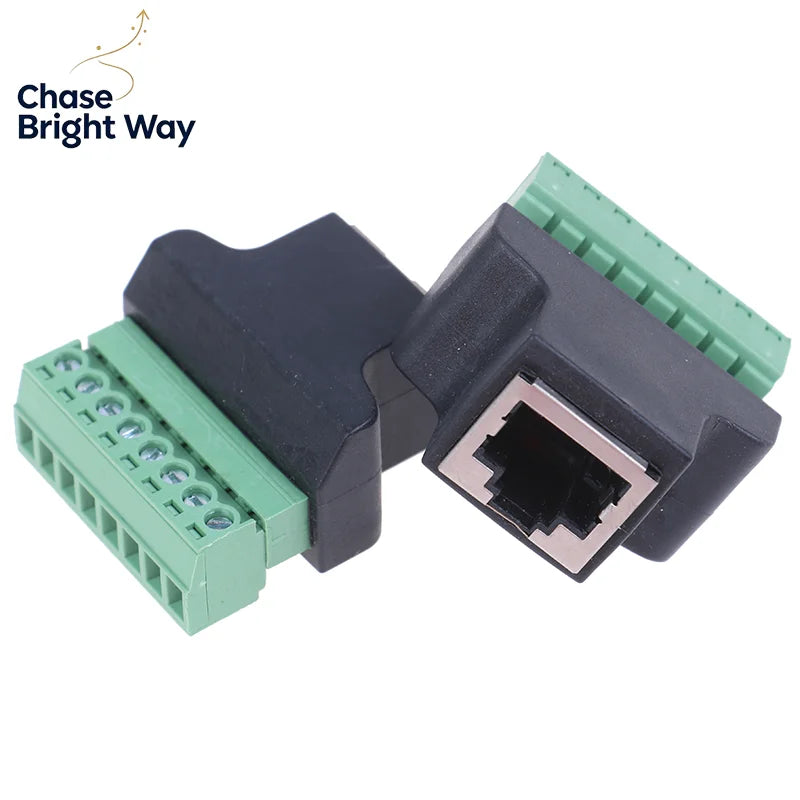

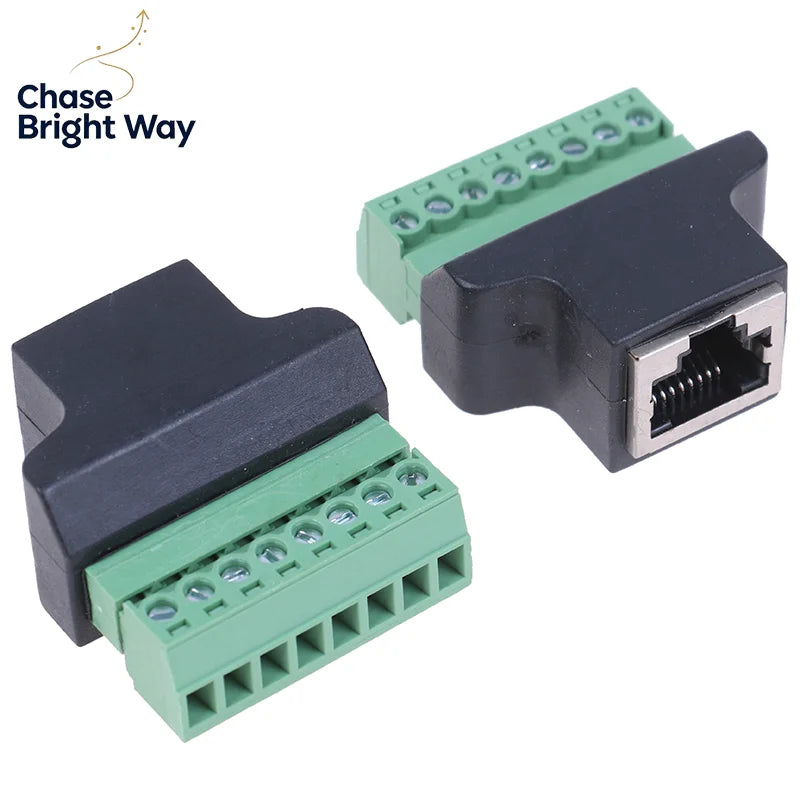

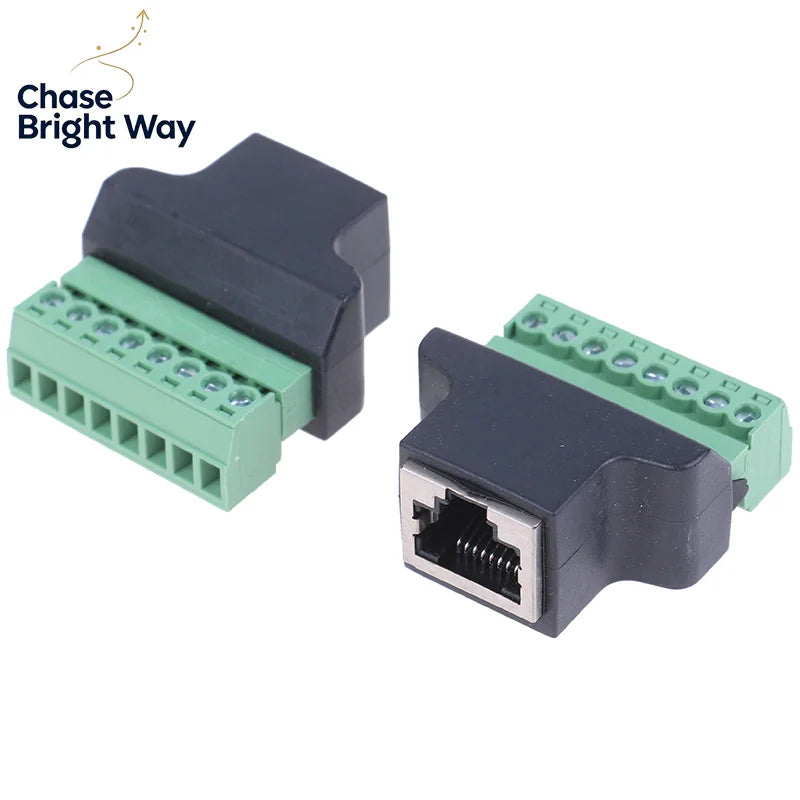

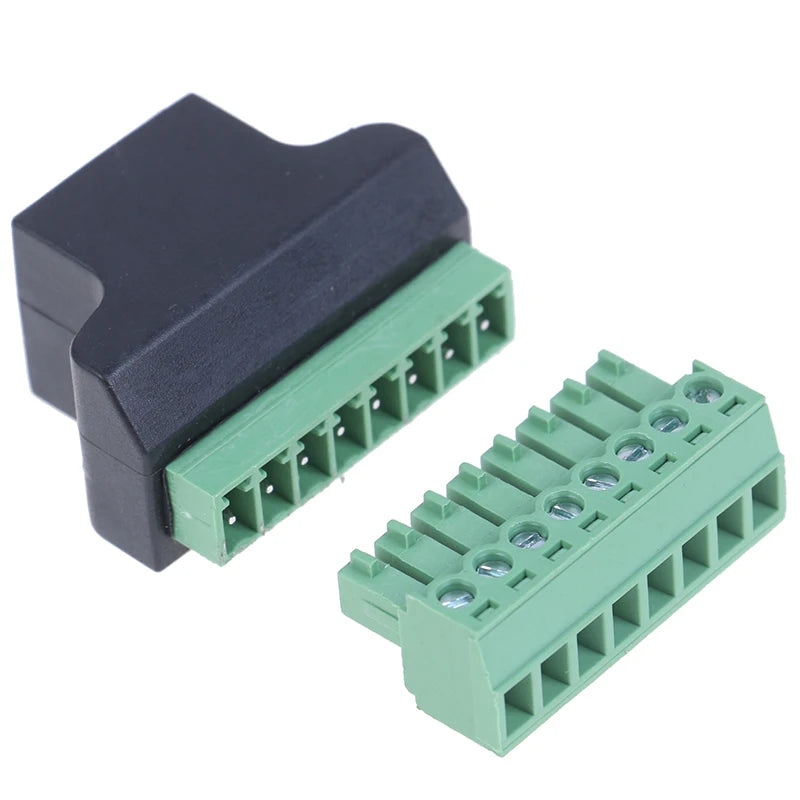

RJ45 Female to Screw Terminal Block Converter – CCTV & DVR Wiring Made Easy
Simplify your surveillance system wiring with this compact RJ45 Female to 8-Pin Screw Terminal Adapter. Designed for use with CCTV DVRs and video hubs that feature RJ45 video ports, this converter lets you connect individual UTP conductors directly to clearly labeled screw terminals — no crimping tools or patch cables required.
Wired in compliance with the EIA/TIA 568B structured cabling standard, each of the 8 terminal positions is marked to match its corresponding input channel, making installation straightforward and mistake-free. The heavy-duty plastic and metal construction ensures a secure, long-lasting connection even in demanding installations.
Key Features
- EIA/TIA 568B Compliant: Wired to the industry-standard structured cabling specification for reliable network and video signal integrity.
- 8 Labeled Screw Terminals: Each terminal is clearly marked per channel, eliminating guesswork during installation.
- Compatible with RJ45 Video Hubs: Works seamlessly with DVRs and hubs featuring RJ45 video ports.
- Heavy-Duty Build: Plastic + metal construction for a firm, durable connection.
- Compact & Practical: Measures approx. 38 × 32 × 18 mm — easy to fit into tight installation spaces.
- No Battery or Wireless Module Required: Purely passive connector — no power needed.
Specifications
| Material | Plastic + Metal |
| Color | Black & Green |
| Dimensions | Approx. 38 × 32 × 18 mm / 1.50 × 1.26 × 0.71 in |
| Connector Type | RJ45 Female to Screw Terminal Block |
| Wiring Standard | EIA/TIA 568B |
| EU LVD Voltage Rating | Low Voltage – Below 50 Vac or 75 Vdc |
| Country of Origin | Made in Mainland China |
What's in the Box
- 1 × RJ45 to Screw Terminal Converter Adapter
- Note: No retail packaging. Other accessories shown in product images are not included.
Related Products You May Like
- Reptile Infrared Heat Lamp Bulb | Turtle & Terrarium Heater
- Kesoto USB Heated Shawl Blanket – 3-Gear Wearable Warm Wrap
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What wiring standard does this RJ45 to screw terminal adapter follow?
A: This adapter is wired in accordance with the EIA/TIA 568B structured cabling standard. Each of the 8 screw terminals is labeled to correspond with the correct UTP conductor and input channel, ensuring a proper and reliable connection.
Q: Is this adapter compatible with my CCTV DVR system?
A: Yes. This converter is designed specifically for use with CCTV DVRs and video hubs that feature standard RJ45 video ports. It allows you to land individual UTP cable conductors on the screw terminal side without the need for pre-made patch cables.
Q: Does this product require any power source or batteries?
A: No. This is a fully passive connector adapter — it requires no battery, no external power, and has no wireless functionality. It operates purely as a mechanical and electrical connection interface.
Q: What are the exact dimensions of this adapter?
A: The adapter measures approximately 38 × 32 × 18 mm (1.50 × 1.26 × 0.71 inches). Please allow a tolerance of 0–1 cm due to manual measurement. Color may vary slightly between different monitors.
