TTL Optical Transceiver Module | FC Interface | Long-Range UAV Fiber Optic Signal Transmission
Take your drone operations and aerial monitoring to the next level with this high-reliability TTL Optical Transceiver Module. Engineered for demanding outdoor environments, this compact fiber optic signal transmission device delivers lossless, zero-lag HD video and data over distances up to 20KM (with optional variants up to 80KM). Whether you're running industrial inspections, border monitoring, emergency response missions, or urban air quality surveillance, this module is built to perform without compromise.
Key Features
- Stable, Interference-Free Transmission: Built on a precision FR-4 fiberglass circuit board with premium soldered electronic components, the module minimizes electromagnetic interference and signal loss — ensuring reliable HD video transmission even in high-EMF environments.
- Overvoltage Surge Protection: A built-in 35V voltage-resistant capacitor guards against overcurrent and power instability, protecting your hardware from fluctuating outdoor power supplies and extending the module's service life.

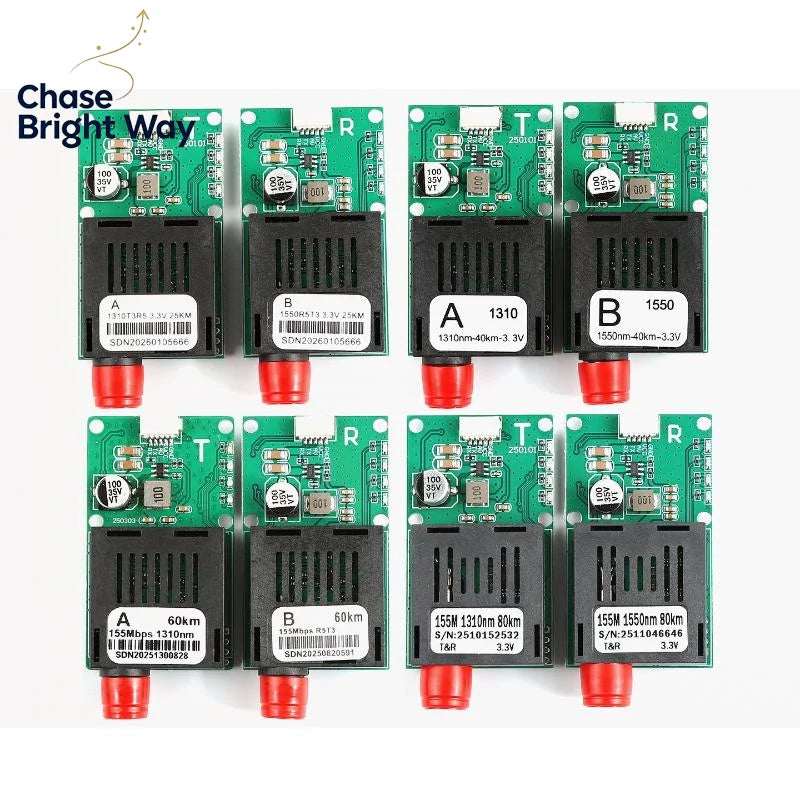

- Multiple Transmission Distance Options: Equipped with a professional 1310nm/1550nm fiber optic system, this module supports optional transmission distances of 25KM, 40KM, 60KM, and 80KM — ideal for industrial inspection drones, UAV fleets, and civil emergency response platforms.
- Plug-and-Play Installation: Universal FC interface with an upgraded soldering process means zero additional drivers required. Deploy within seconds — perfect for fast-paced, temporary outdoor operations.
- Extreme Environment Adaptability: The ABS+PC hollow cooling shell rapidly dissipates heat during long-duration use. Operates stably between -40°C to +85°C, handling high temperature, high humidity, and harsh outdoor conditions with ease.
Technical Specifications
| Type | UAV / Drone Video Optical Transceiver Module |
| Interface | FC (Fiber Connector) |
| Operating Voltage | DC 5V – 26V (TTL) |
| Transmission Wavelength | 1310nm / 1550nm |
| Transmission Range | 20KM (standard); 25KM / 40KM / 60KM / 80KM optional |
| Operating Temperature | -40°C to +85°C |
| Circuit Board Material | FR-4 Fiberglass |
| Housing Material | ABS + PC Heat Dissipation Shell |
| Fiber Port | Metal Fiber Optic Port |
| Driver Required | No – Plug and Play |
| Country of Origin | Made in Mainland China |
Applicable Scenarios
- UAV / Drone HD Video Transmission
- Power Line & Infrastructure Patrol
- Emergency Disaster Relief Communication
- Border & Perimeter Surveillance
- Tunnel & Underground Pipeline Inspection
- Urban Air Quality & Environmental Monitoring
- Military & Civil UAV Data Links
Package Contents
- 1 × TTL Optical Transceiver Module

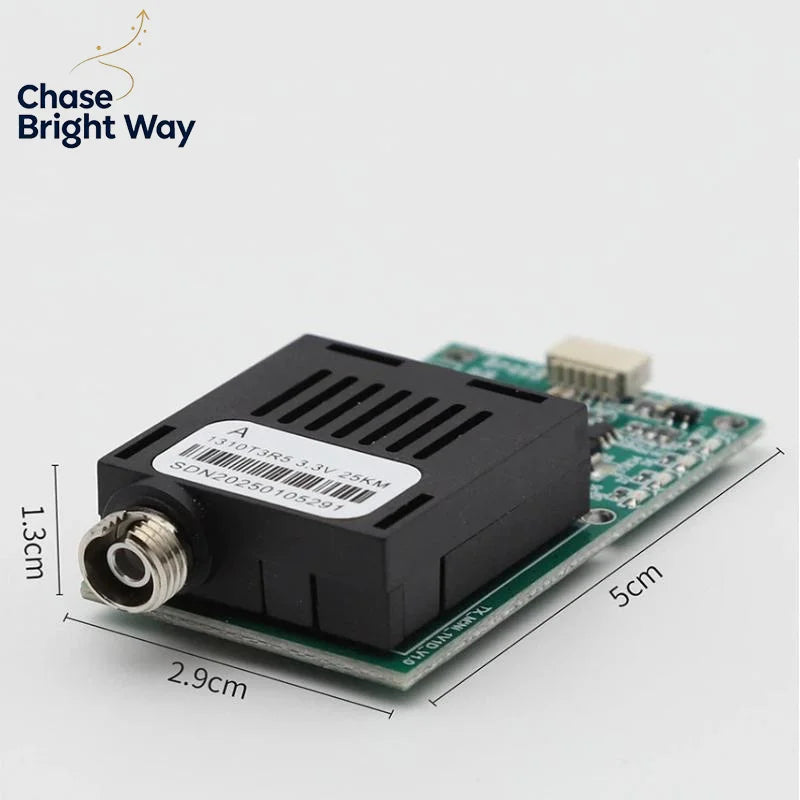

Note: Product photos are not to scale — please refer to the specifications above for dimensions. Slight color variation may occur due to monitor display settings. Minor measurement tolerances may apply.
You May Also Like
- Reptile Infrared Heat Lamp Bulb | Turtle & Terrarium Heater
- Insulated Outdoor Faucet Cover – Winter Hose Bib Protector
- Winter Outdoor Faucet Cover – Waterproof Oxford Cloth Tap Protector
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What does TTL mean in the context of this optical transceiver module?
A: TTL stands for Transistor-Transistor Logic, which refers to the signal voltage standard used by this module (DC 5V–26V). It describes the electrical interface standard the module uses to communicate with drones, UAVs, and other compatible devices via its FC fiber optic connector.
Q: Is this TTL optical transceiver module compatible with all drone types?
A: This module is designed with a standard universal FC fiber optic interface and supports a wide DC voltage input range (5V–26V), making it broadly compatible with most industrial inspection drones, civilian UAVs, and emergency response platforms. Always verify your drone's interface and voltage specifications before installation.
Q: Does this module require any special software or drivers to operate?
A: No. This optical transceiver module features a plug-and-play design with no additional drivers or software required. Simply connect it using the standard FC interface and it is ready for deployment — ideal for fast on-site setups.
Q: Can this module operate reliably in extreme weather conditions?
A: Yes. The ABS+PC hollow cooling shell provides efficient heat dissipation, and the module is rated to operate reliably between -40°C and +85°C. It is designed to handle high temperatures, high humidity, and challenging outdoor environments typical of industrial and field UAV deployments.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
