XZZ BGA Chip Warp Correction Fixture — Laptop Motherboard Repair Tool

Keep your laptop motherboard repairs precise and damage-free with the XZZ CPU Warp Correction Fixture. Engineered for electronics technicians and DIY repair enthusiasts, this BGA chip straightening tool applies even, controlled pressure across the entire chip surface — eliminating warps without force, without risk, and without bridging.

Key Features

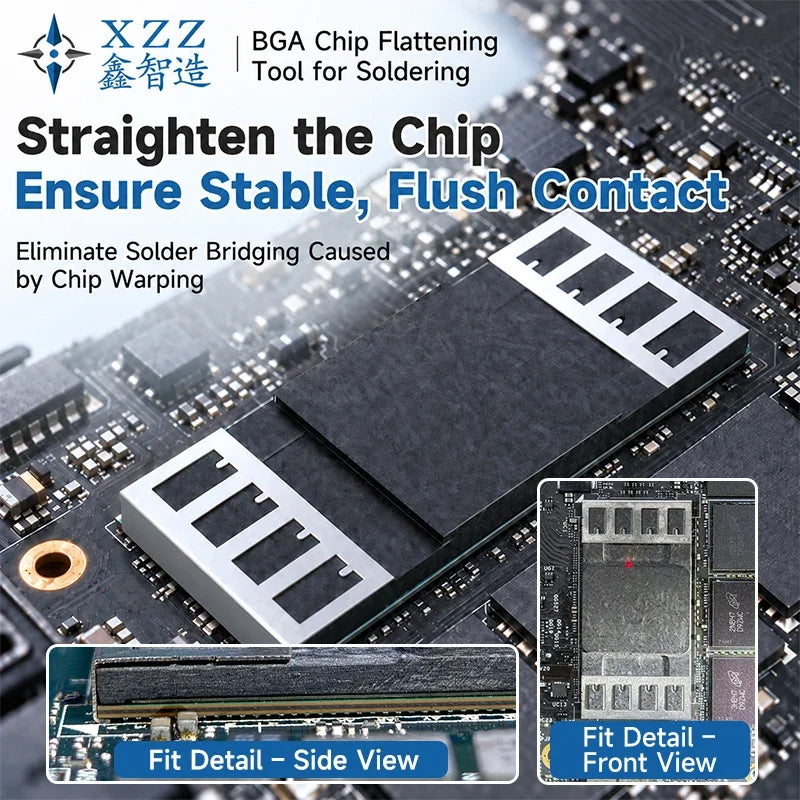

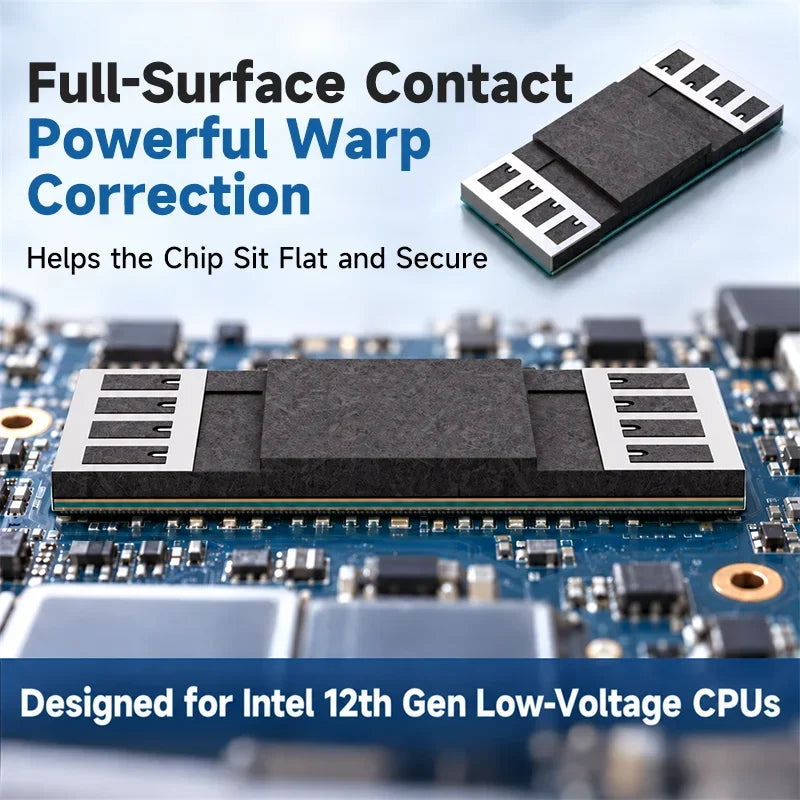

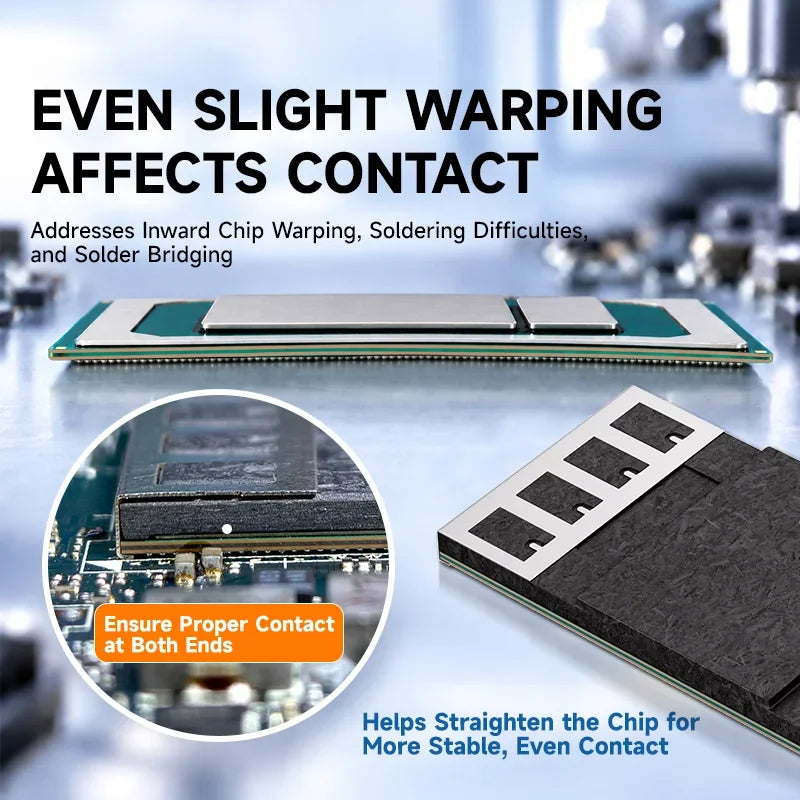

• Full-Surface Contact Design: Distributes pressure evenly across the chip face to straighten inward warping and restore a perfectly flat profile for reliable soldering.
• Eliminates Solder Bridging: Holds the chip flat and secure during the soldering process, preventing bad contact points and solder bridges that cause board failures.

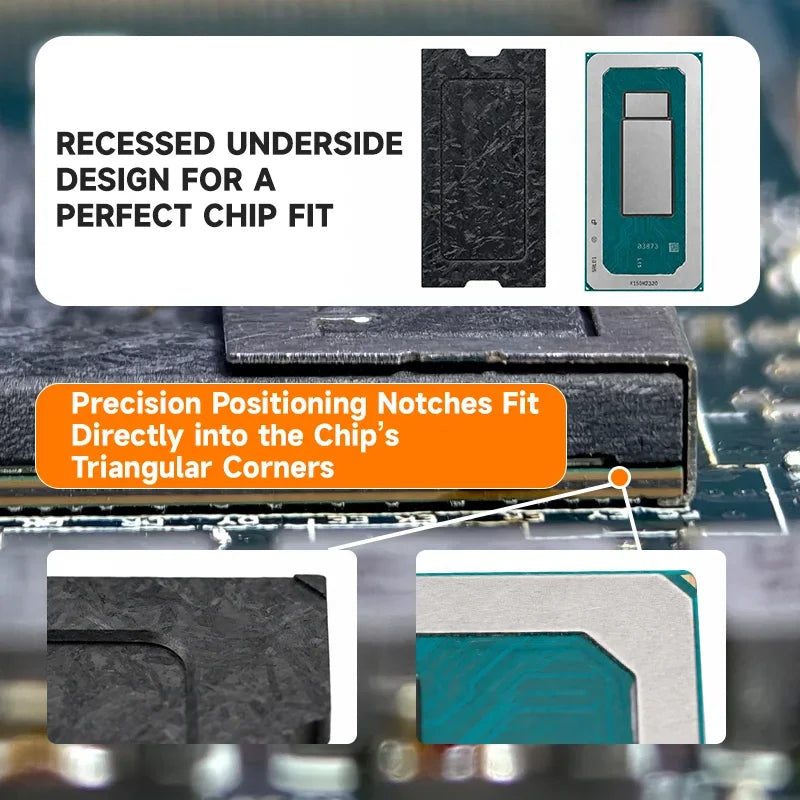

• Precision Recessed Underside with Positioning Notches: Triangular corner notches align perfectly with BGA chip edges for accurate, repeatable positioning every time.

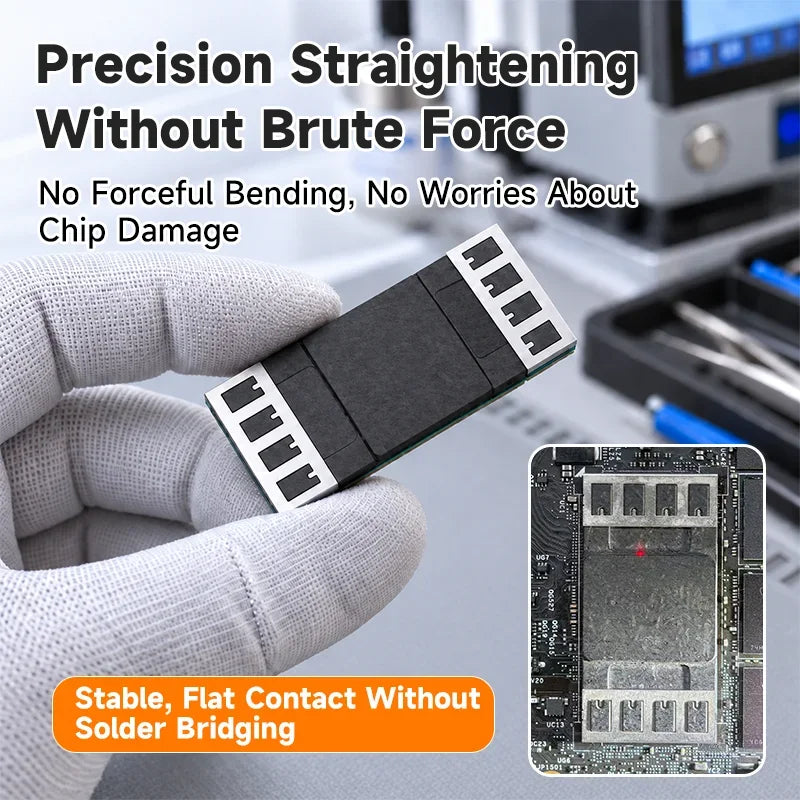

• Gentle, Controlled Operation: No forceful bending required — the fixture's even-pressure mechanism drastically reduces the risk of cracking or damaging sensitive CPU chips.
• Durable Plastic Construction: Lightweight yet sturdy plastic body that is safe for use on delicate electronic components and resists heat during rework sessions.

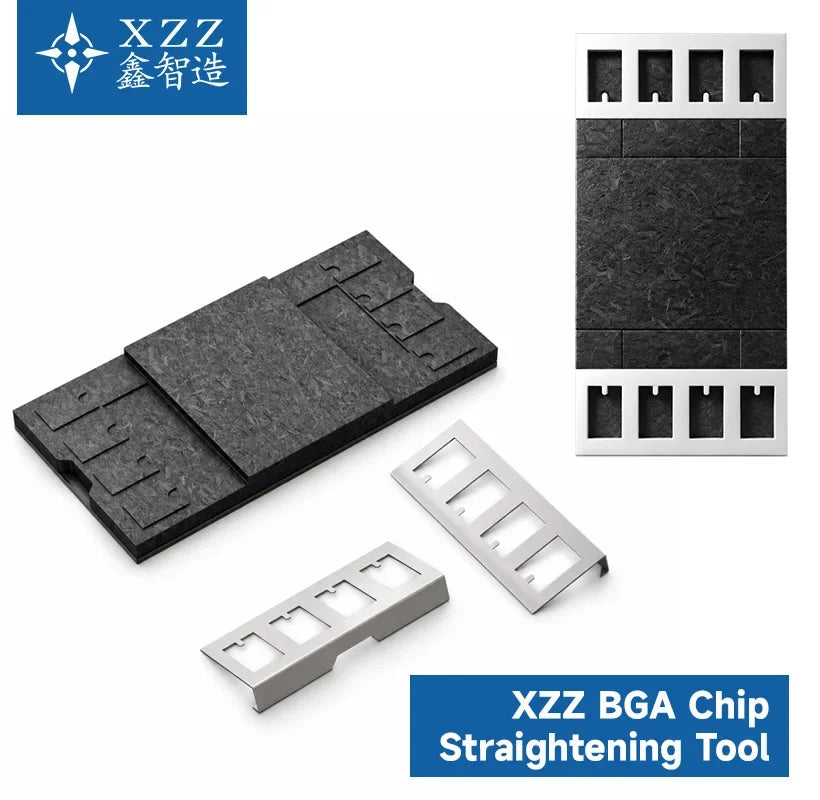

• Combination Tool Design: Versatile enough for use across a range of BGA chip sizes found in laptop motherboards, making it a go-to fixture in any repair workshop.

Specifications

Who Is This For?

Whether you're a professional board-level technician or a hands-on repair hobbyist, this fixture is designed to make BGA chip rework safer and more consistent. It's an essential addition to any laptop or phone repair toolkit where chip warping is a common challenge.

Related Products You May Find Useful

• Reptile Infrared Heat Lamp Bulb | Terrarium Heater — precision heat source for controlled environments
• Stretch Chair Backrest Cover Slipcover – Universal Office Fit — keep your workspace comfortable during long repair sessions
• Kesoto USB Heated Shawl Blanket – 3-Gear Wearable Warm Wrap — stay comfortable at your repair bench

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What types of BGA chips is this warp correction fixture compatible with?

A: The XZZ BGA Chip Warp Correction Fixture is designed for use with CPU and BGA chips commonly found in laptop motherboards. The precision positioning notches are shaped to match standard triangular chip corners, making it suitable for a range of BGA chip sizes used in laptop and mobile device board-level repairs.

Q: Do I need any special skills or tools to use this fixture?

A: No special skills are required beyond basic motherboard repair knowledge. The fixture is designed for even, controlled pressure application without forceful bending — simply align the chip using the recessed notches and apply the fixture. It works alongside standard soldering and rework stations.

Q: Will this fixture damage the chip or motherboard during use?

A: The tool is specifically engineered to minimize the risk of chip damage. Its full-surface contact design spreads pressure evenly, and the plastic construction is non-conductive and gentle on delicate electronic components. Following the included alignment guidance ensures safe, effective straightening every time.

Q: Can this tool be used for phone motherboard repairs as well?

A: While the fixture is primarily designed for laptop motherboard BGA chip rework, it can also be applied to phone repair scenarios where BGA chip warping occurs, provided the chip size aligns with the fixture's positioning notches.
