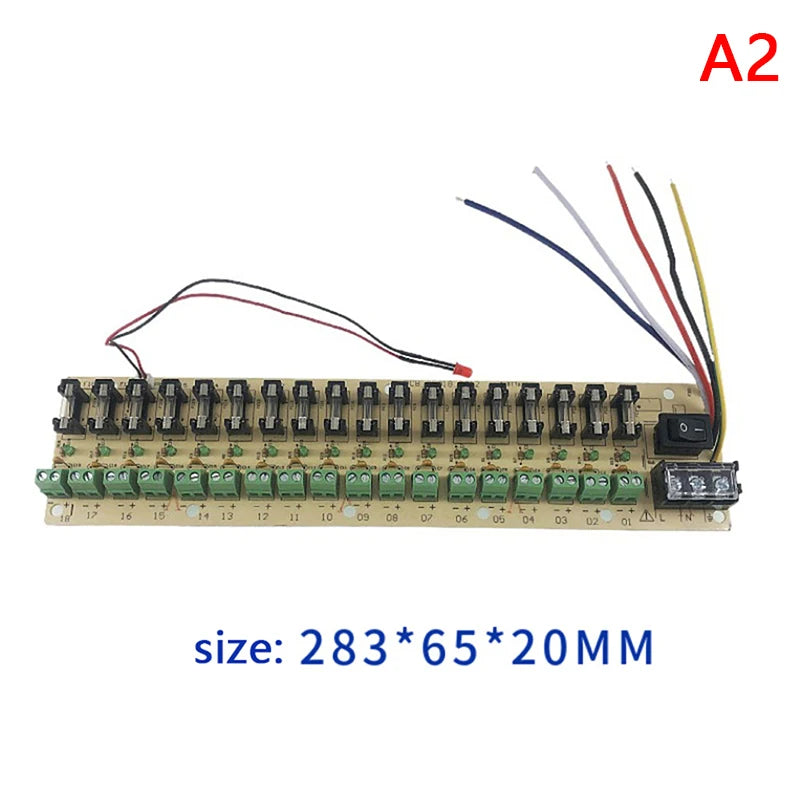

9/18-Way PCB Terminal DC Power Distribution Board – 24V

$60.72 $80.10

PCB Terminal DC Power Distribution Board – 9/18-Way, 24V

Upgrade your surveillance, access control, or LED wiring setup with this high-quality PCB Board Terminal DC Power Distribution Board. Designed for switch power supply systems, this 9/18-way board lets you distribute power across multiple channels cleanly and efficiently — all from a single unit. Whether you're managing a multi-camera monitoring system, electric locks, or LED installations, this board delivers stable, interference-free performance with a fully adjustable output voltage.

Key Features

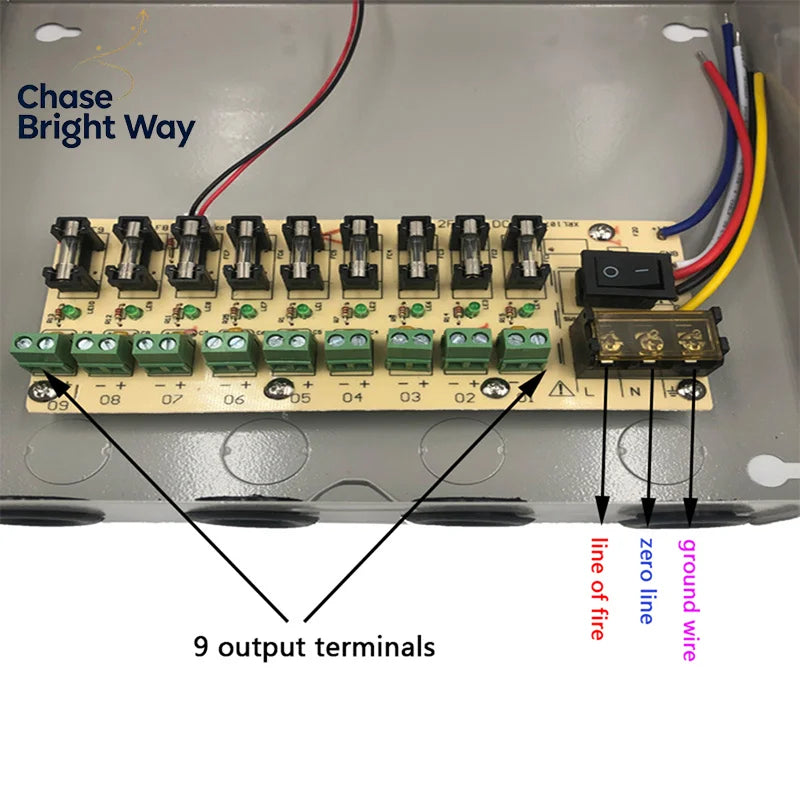

9 or 18 Output Channels: Simultaneously powers up to 9 channels of monitoring cameras, access control electric locks, or LED devices from one board.
Overvoltage & Overcurrent Protection: Built-in safeguards protect your connected devices from electrical faults and incorrect wiring connections.
Wrong Connection Protection: Prevents damage caused by accidental reverse or incorrect wiring — ideal for installers working in complex setups.
High Power, Low Interference: Engineered for high-power distribution while minimising signal and electrical interference across all output channels.
Adjustable Voltage Output: Output voltage is adjustable to suit a wide variety of connected devices and system requirements (rated 24V DC).
Low Voltage Compliant: Operates below 50V AC or 75V DC in line with EU LVD low-voltage standards.
Compact PCB Design: Clean terminal block layout makes wiring organised and straightforward, even in tight installation spaces.

Specifications

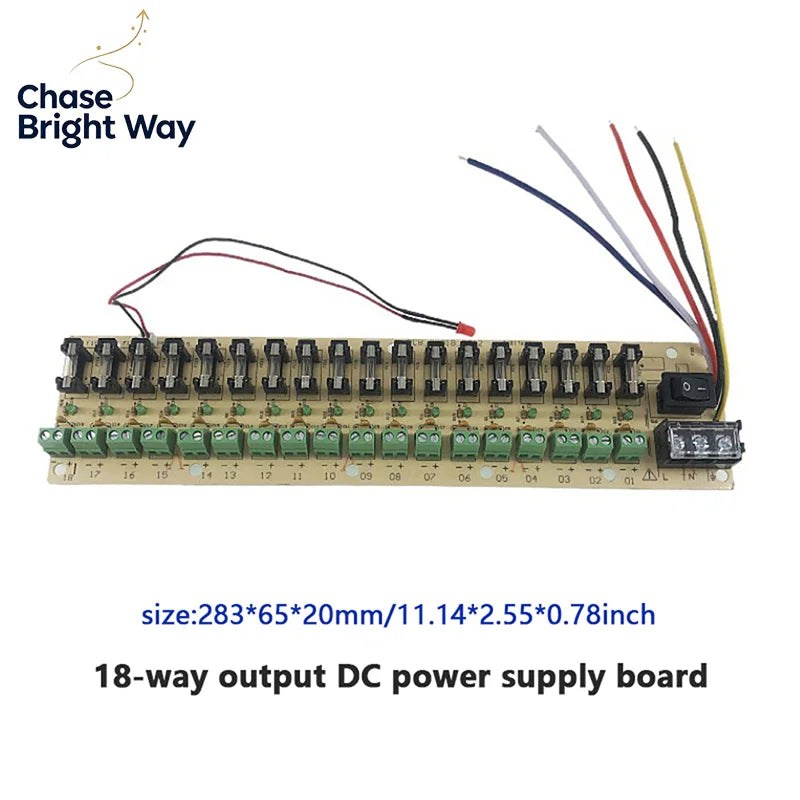

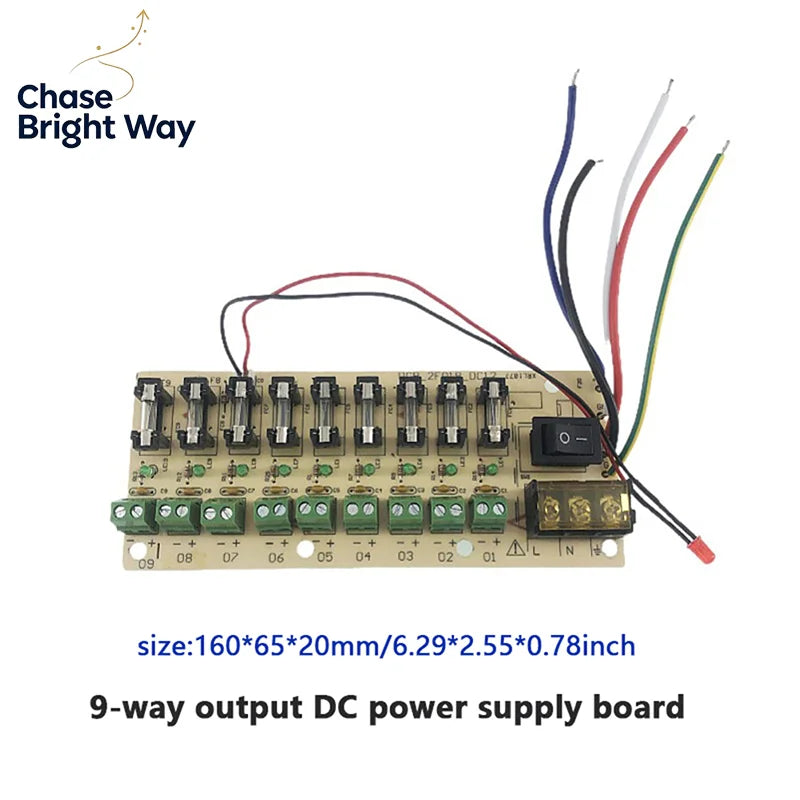

Output Channels: 9-way / 18-way
Rated Voltage: 24V DC
Voltage Range: Below 50V AC or 75V DC (EU LVD compliant)
Battery Included: No
Wireless: No
Country of Origin: Made in China

Package Contents

1 × PCB Terminal DC Power Distribution Board (9-way or 18-way, as selected)

Related Products You May Like

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What is a 9/18-way PCB terminal DC power distribution board used for?

A: A 9/18-way DC power distribution board is used to split a single DC power source (such as a switch-mode power supply) into multiple output channels. It is commonly used in CCTV surveillance systems, access control electric lock wiring, and multi-zone LED lighting installations, allowing up to 9 or 18 devices to be powered simultaneously from one board.

Q: Is the output voltage adjustable on this power distribution board?

A: Yes, the output voltage on this PCB terminal board is adjustable, making it versatile for powering a range of devices at your required voltage. The board is rated at 24V DC and operates within the EU LVD low-voltage range (below 50V AC or 75V DC).

Q: Does this board offer protection against incorrect wiring or electrical faults?

A: Yes. This power distribution board features built-in overvoltage protection, overcurrent protection, and wrong-connection protection. These safeguards help prevent damage to connected equipment in the event of a wiring error or electrical fault during installation or operation.

Q: Is this board compatible with standard switch power supplies?

A: Yes, this PCB terminal board is designed specifically for use with standard DC switch power supplies. It is suitable for monitoring systems, LED wiring setups, and access control installations that use a 24V DC switch power supply as the input source.

Production & Packaging Notice

To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
